Stem Generation and the Mixer

Song Master gives you the ability to re-mix any song using instrument groups. With the mixer, you can Solo, Mute, and change the volume and pan position of each instrument group.

This is a great way for you to practice a song in a band setting. Simply mute the instrument you want to play and begin practicing!

Generate Stems

To generate stems, first click the Mixer tab in the bottom section of Song Master:

Then click the GENERATE STEMS button and select the stems you want to generate.

If you are running the Pro version you will have the option to select from six instrument groups, the non-Pro version won't have the Piano and Guitar as options.

The stem option labeled the rest is a bit special in that it will contain all of the audio that did not belong to a selected stem type. For example, if you just want a vocal track with an accompaniment track, then just select Vocals and the rest. This will result in two audio tracks: a vocal only track and the rest track which will contain all the Drums, Bass, Guitars, Pianos, etc.

When the GENERATE button is clicked, Song Master will do some heavy computations to extract each instrument group into separate tracks.

When Song Master finishes generating the stem tracks, you will have a mixer panel for each track. Use the mixer controls to Mute, Solo (mute all other stems), change the Volume and Pan position for each track.

Saving Stems

Stems are automatically saved when the Song is saved. You can manually save stems by clicking the SAVE STEMS button. By default, stems are saved as .flac files (flac uses lossless compression). To save more storage space, you can change the saved format to ogg (similar to mp3 but better) by editing the Stem save format option in the Settings dialog's General tab. While they are being saved, you can still continue to use Song Master.

You can also change the directory that stems are saved to by going to Settings and changing the Stems Cache Path

You can quickly access the separated stems by clicking on the SHOW IN EXPLORER (SHOW IN FINDER on macos) button.

External Stems Support

Song Master has support for playing external stems. If you have existing stem files for a song, you can have Song Master load all the stem files and use the Mixer to mix, solo, and mute the individual tracks.

To load an external set of stem files, right-click the folder in the Audio/Other Browser and select Open as Stems:

Note: all audio files in the folder are assumed to be for the same song and will be loaded.

Support for .mogg files

Some external stem tracks are stored in files with a file extension of ".mogg". This is convenient because all stem tracks are embedded in just one file. However, each track is stored as a single channel track with no panning information. For instance, if guitars are recorded to a left and right stereo pair, a "mogg" file will store them as two mono channels that are panned to the center (and not left/right). It also doesn't supply a label for the tracks so each track gets a generic name.

Editing Options

Reordering Tracks

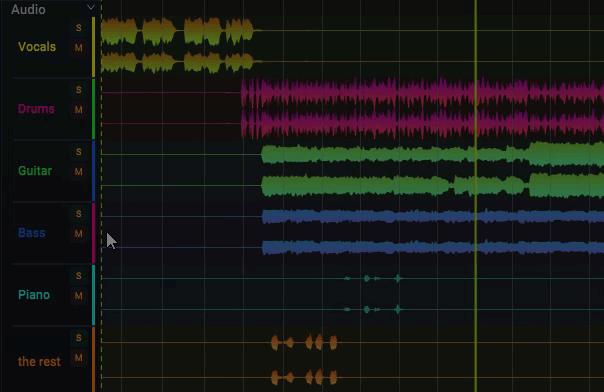

Drag-n-drop the track headers to re-order tracks in the Mixer view:

Changing the Default Track Order

Re-ordering the tracks in the above way will save the track ordering with the song. However, if you want to set the default ordering for new songs, you need to re-order the tracks in the Label Set Editor:

Changing the Label Set sets the default track order for new songs. If you want to change the ordering in an existing song to use the Label Set ordering, then click the Reset track order from the Audio drop-down menu.

Resizing Tracks

Drag the borders of the track header to change the size of the track:

To reset the all track's heights back to uniform size, click the Audio track header's drop-down menu and select Reset track heights.

Change Track Colors

Click the Audio drop-down menu and select Edit Label Set to display the Label Set Editor and change the tracks colors:
